lower stage equipment
With a three-dimensional and magnificent lower lift and stage wagon, the safety of the performance is considered as the top priority.
With a three-dimensional and magnificent lower lift and stage wagon,
the safety of the performance is considered as the top priority.
■ Overview of the multi-function elevator stage
An improved device that can complement the shortcomings of the disabled lift that took up a lot of stage space in existing performance halls.
It is a highly versatile device that can be conveniently used when directing a performance as it does not protrude above the stage surface, and can be converted into a staircase and a cargo lifting stage (800 kg).
[Patent No. 10-2066528, No. 10-1861107]
■ How to use the multi-function elevator stage
Use of stairs
Stage use
Use of lift
01. Custom size specifications for performance halls can be produced to suit the stage space
02. Can be used as stairs, lifts, and stage space
03. Simplified structure reduces breakdowns and reduces manufacturing costs
04. Four plates are interlocked to provide high control reliability
05. Prevents safety accidents by eliminating the phenomenon of the platform's horizontal state being broken
■ Multi-functional lift installation technology
Reduced space for narrow device PIT
Compact DC sub-motor with bendable link chain
LINK CHAIN method
Use of methods with high mechanical efficiency and durability
LM guide method
Excellent guide verticality, high precision and low noise
DC servo motor method
Compact, simple to manufacture and install motor type
01. Can be installed outside the stage without exposing the driving part
02. Securing price competitiveness by minimizing architectural changes and reducing costs during remodeling
03. Improvement direction of guide (scissors, LM guides) and power transmission equipment (couplings, universal joints)
04. Reduced narrow sub-unit PIT space

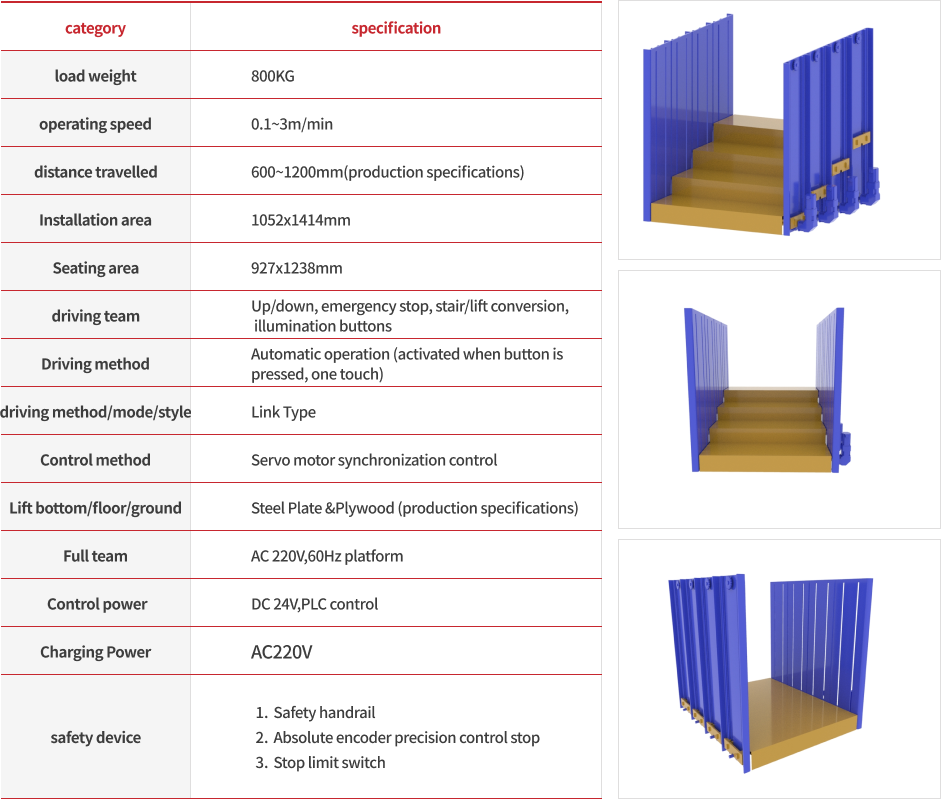

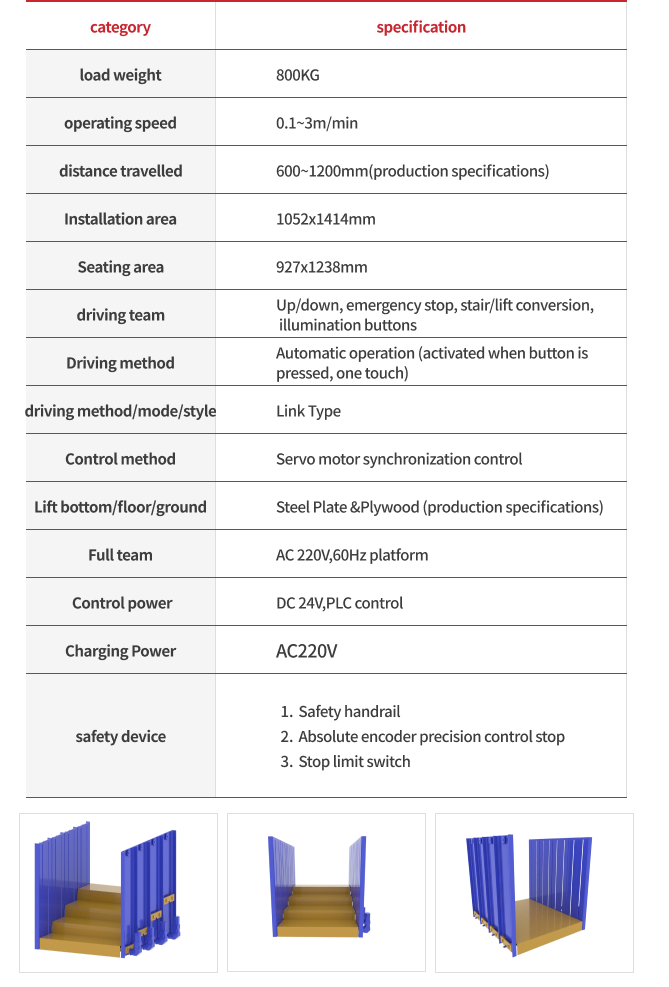

■ Multifunctional Lift Features
