upper stage setting
We provide quick and accurate production changes by utilizing stage machinery located at the top of the performance hall.
We provide quick and accurate production changes by utilizing stage machinery
at the top of the performance hall.
■ Overview of driving unit
This is a driving unit that can operate various sets and curtains required for performance production,
and it is specially designed with the highest safety technology as a priority.
Thanks to the load sensor that can detect in real time,
operators can easily determine the weight of the set and prevent safety accidents
caused by overload in advance.
It is also equipped with a temperature sensor to effectively protect the stage equipment
in case of overload or defective electrical components.

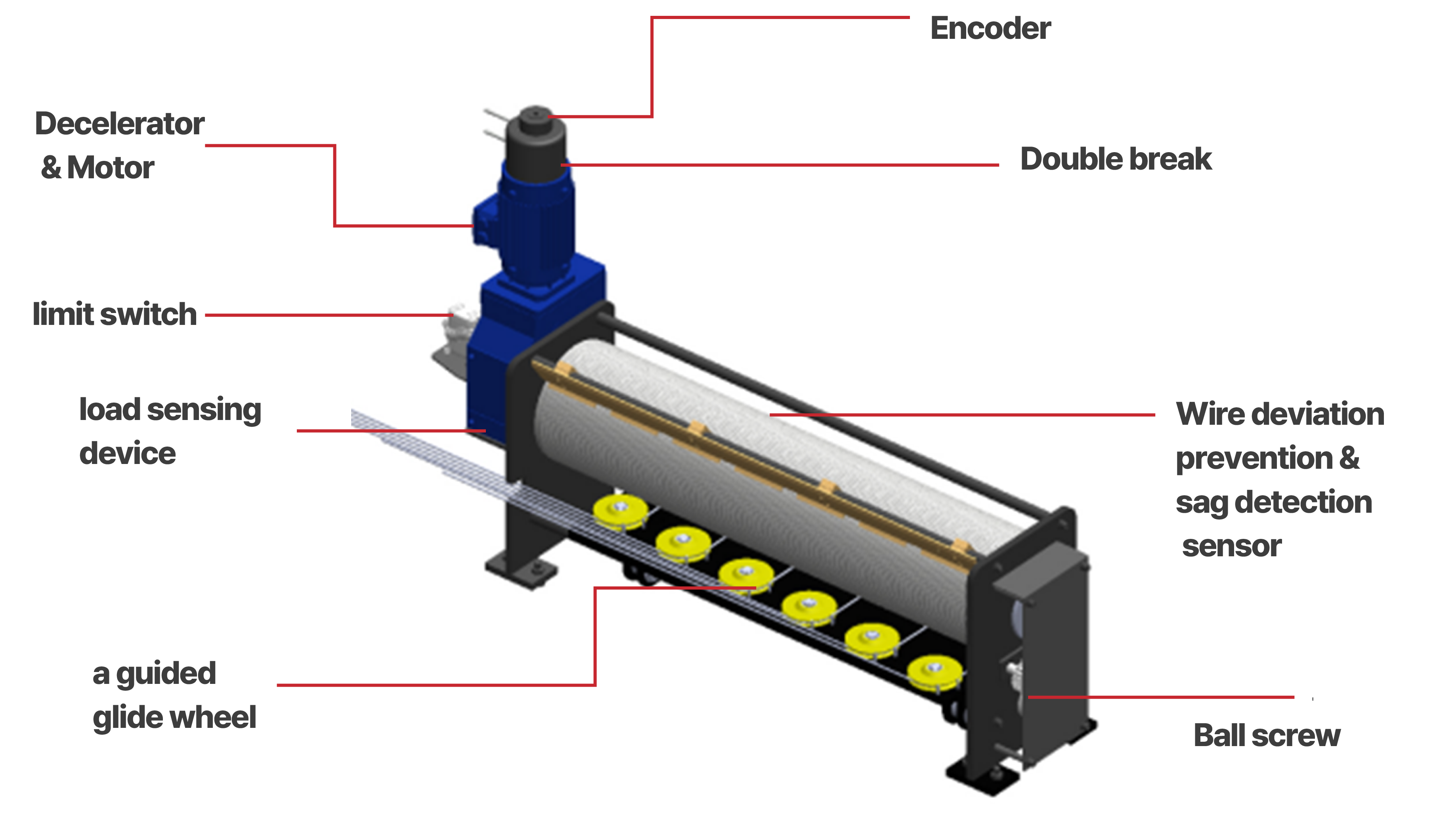

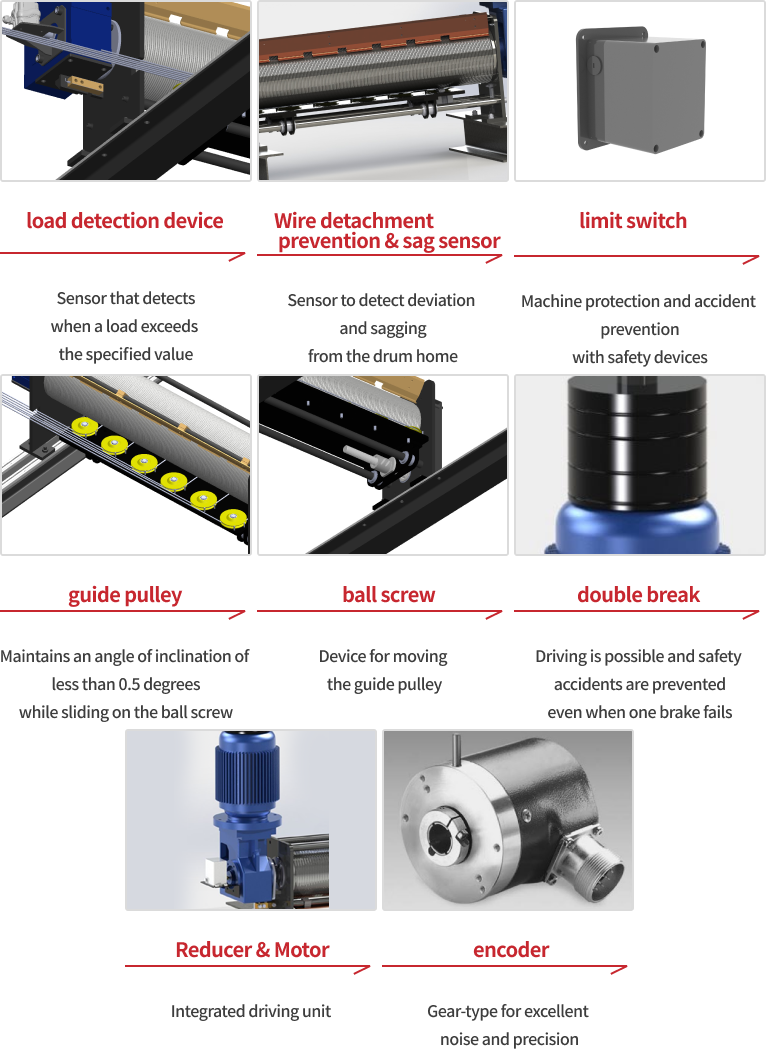

■ Drive part configuration
load detection device
Sensor that detects
when a load exceeds the specified value
guide pulley
Maintains an angle of inclination of less than 0.5 degrees
while sliding on the ball screw
Wire detachment prevention & sag sensor
Sensor to detect deviation and sagging
from the drum home
ball screw
Device for moving the guide pulley
limit switch
Machine protection and accident prevention
with safety devices
Reducer & Motor
Integrated driving unit
double break
Driving is possible and safety accidents are prevented
even when one brake fails
encoder
Gear-type for excellent noise and precision
■ Drive unit installation photo
