Fire screen
This is a safety stage device installed at the front of the stage to block the stage and the audience in the event of a fire and separate it into a fire zone.
This is a safety stage device installed at the front of the stage to block the stage and
the audience in the event of a fire and separate it into a fire zone.
Are you still running your centrifugal brakes on UPS power?
If a fire causes the electrical wires connected to the wall to burn…
Do you still implement deceleration with air buffers?
If a safety accident occurs due to the sagging of the wire rope caused by the impact of the buffer…
■ Overview of the performance venue fire curtain
Haon A-Tech's fire barrier offers unique strengths among domestic products.
Normally, in case of a fire, the building's electricity is cut off first,
but our wireless fire curtain introduced today can be activated.
Built with mechanical wire ropes and a specially designed hydraulic system,
it can safely isolate the stage and audience even when the electricity is cut off.
Naturally, it satisfies all performance venue fire prevention regulations (KS A 6114).
Now you can join us in installing mandatory fire curtains at your venue.
■ KS A 6114 Performance Hall Fireproof Curtain Specification
1.The fire curtain must be capable of being dropped in an emergency even when the power to the performance venue is cut off.
2.For safety, the emergency drop operation of the fire curtain must be decelerated from the 3m point.
3.The emergency drop device must settle on the floor of the unit within 30 seconds.

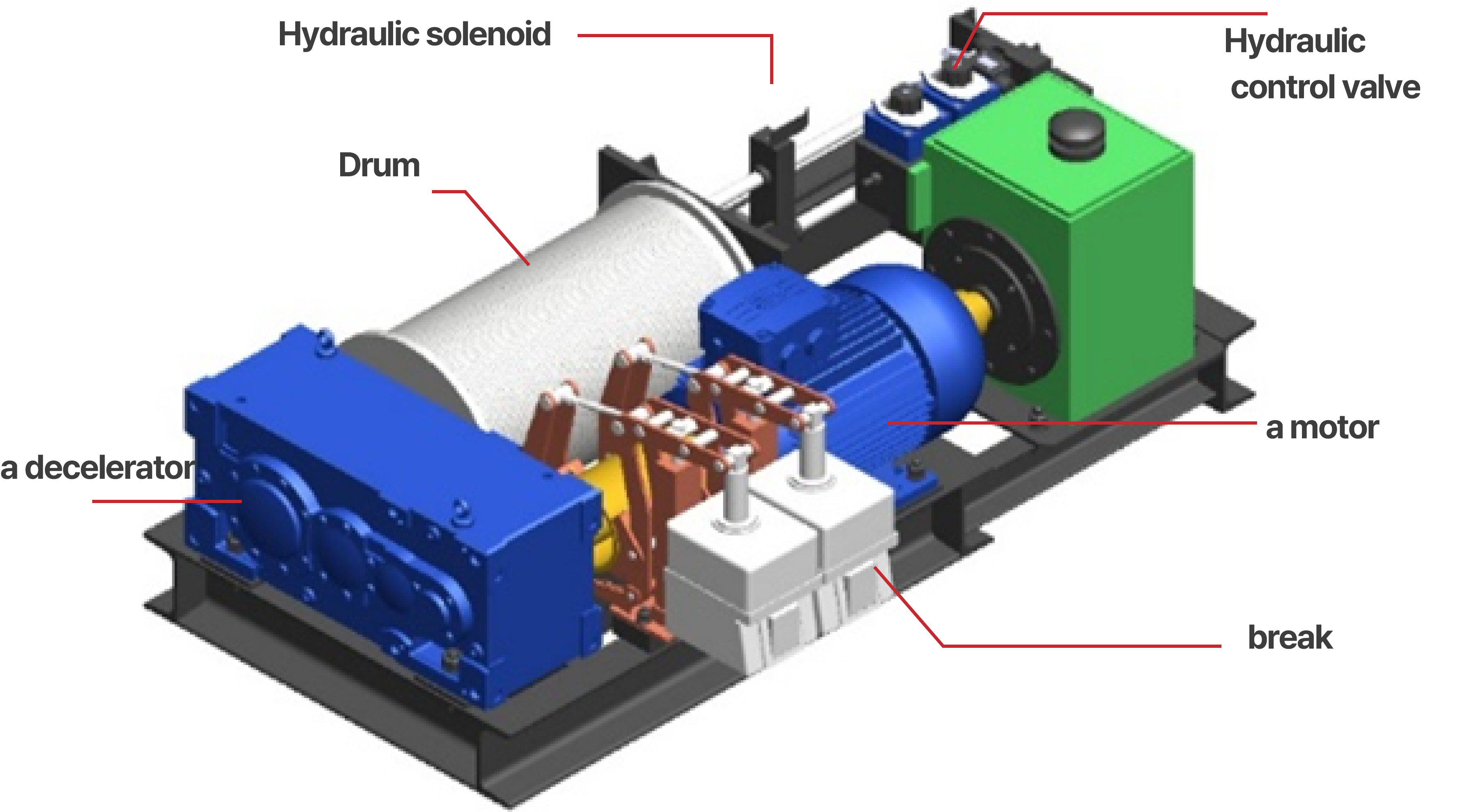

■ Fire curtain actuator
1. Manual (mechanical) operation for power supply cutoff due to defective electrical equipment or cable damage in case of fire
2. No need for additional equipment such as centrifugal brakes or air buffers ➜ Convenient maintenance

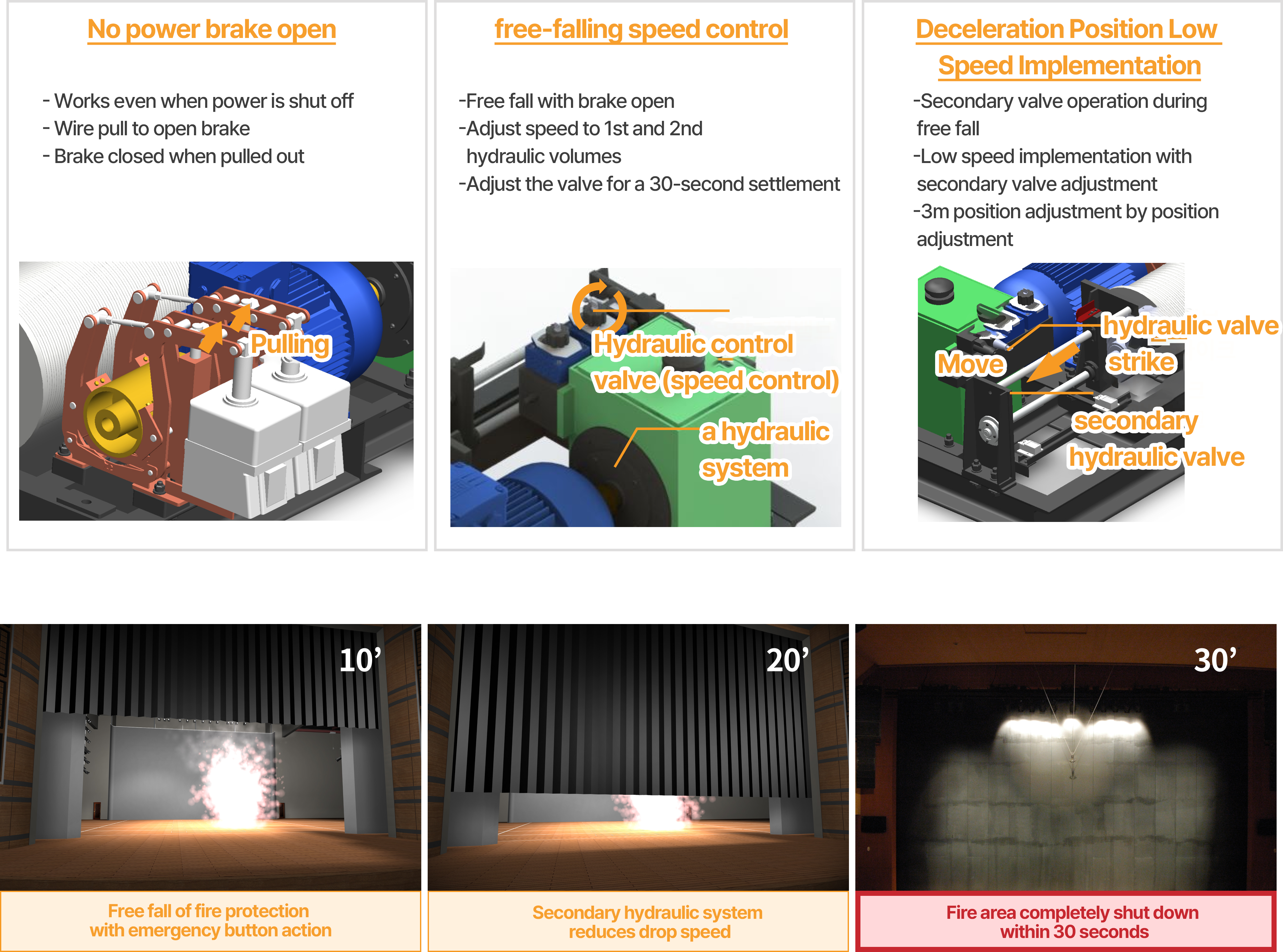

■ Fire shield features
·It is easy to operate because it is connected to the manual lever on the stage after connecting the wire to the brake.
·Emergency operation is possible by manual operation even when power is not supplied to the brakes.
·Efficient operation within a set time is possible by using two flow valves.
·The installation process is simpler and maintenance is easier than with existing fire barriers.
·Maximum lifting load less than 2 tons can be driven by its own weight without weights.
■ Fire screen control panel
·manual lever
·free fall switch
·warning light
·alarm buzzer
·Front glass hammer included
■ Product application photos
